How to Light a 135-Meter Building Facade: Why Beam Angle Matters as Much as Power

Lighting a high-rise building is very different from illuminating a conventional facade.

Recently, we worked on an architectural lighting project involving a building approximately 135 meters high. The client's requirement was clear: the lighting needed to travel from the bottom of the building to the top while maintaining visible brightness at the highest section.

The initial question seemed simple:

How much power is required to illuminate a 135-meter facade?

But after several lighting simulations and discussions with our engineering team, we found that increasing wattage alone was not the answer.

For extreme long-distance architectural lighting, beam angle and optical control become critical.

The Challenge: Delivering Useful Light to 135 Meters

As the projection distance increases, achieving sufficient illumination at the target becomes increasingly difficult.

Using a higher-wattage floodlight increases the available light output, but if the beam distribution is too wide, more light spreads outside the intended target area.

For this project, our objective was therefore not simply to produce more light.

It was to:

Deliver as much useful light as possible to the upper section of the 135-meter building.

That required us to carefully evaluate the relationship between:

• Fixture power

• Beam angle

• Optical efficiency

• Throw distance

• Mounting position

• Aiming angle

• Building geometry

• Required brightness distribution

Comparing 180W / 2° and 300W / 3°

Together with our engineering team, we developed two initial configurations using our STARSHIP Series high-power LED floodlights and customized dual-head mounting brackets.

Solution A: Ultra-Narrow Long-Throw

2 × 180W LED floodlights
2° ultra-narrow beam angle
Customized dual-head bracket

The purpose of this solution was to concentrate the light as tightly as possible for long-distance projection.

Solution B: Higher Power with a Wider Beam

2 × 300W LED floodlights
3° narrow beam angle
Customized dual-head bracket

This configuration provided higher total power, but also a slightly wider light distribution.

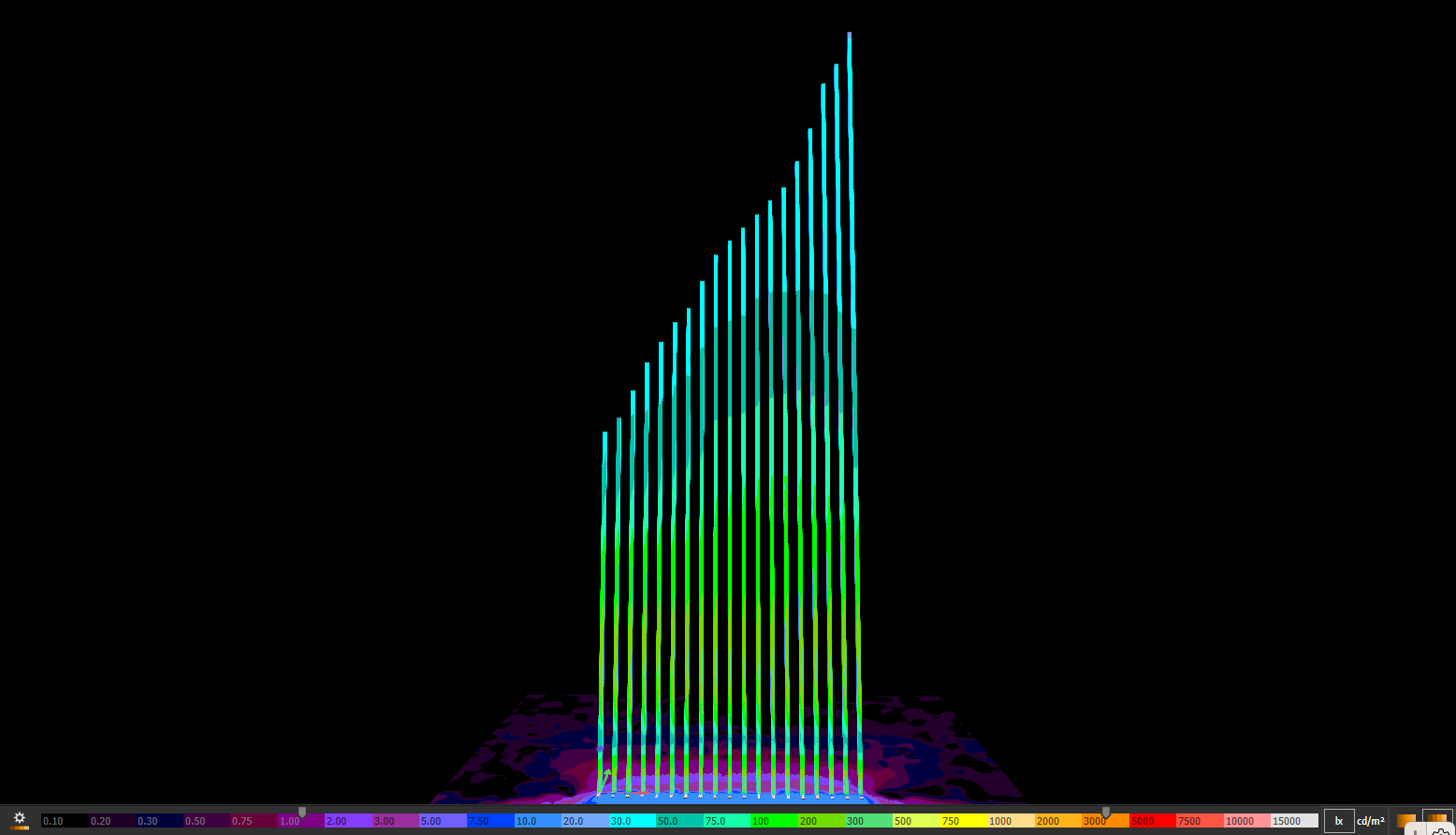

After comparing the lighting simulations, we found something important:

The 2° solution performed better for reaching the upper part of the building.

This demonstrated why wattage alone cannot determine the performance of a long-throw architectural floodlight.

Why Can 1° Make a Difference?

At short distances, the difference between a 2° and 3° beam may appear relatively small.

At very long distances, however, that difference becomes much more significant.

The farther the light travels, the larger the projected beam becomes.

A tighter beam helps maintain a more concentrated distribution over a long distance, while a wider beam covers a larger area but distributes the available light over that larger surface.

This is why ultra-narrow optics can become particularly important when illuminating:

• High-rise building facades

• Towers

• Tall architectural columns

• Monuments

• Bridges

• Large landmarks

• Long-distance landscape features

The goal is not simply maximum lumen output.

The goal is precise delivery of the available light.

The Next Challenge: Balancing Brightness from Bottom to Top

Although the 2° solution showed better long-distance performance, the client still felt that the top of the building needed stronger brightness.

This created another engineering question:

If we concentrate all the light toward the top, how do we maintain a visually balanced effect across the lower and middle sections?

After several rounds of communication, our engineers recommended a mixed optical solution:

1 × 180W / 2°

The ultra-narrow 2° beam would focus on the upper section and provide precise long-distance projection.

1 × 300W / 3°

The higher-output 3° beam would provide stronger coverage across the lower and middle sections.

By combining two different optical distributions, the objective was to achieve a more balanced transition of brightness from the bottom of the building to the top.

Final aiming angles could then be fine-tuned during installation according to actual site conditions.

The Client's Final Decision: 2 × 300W / 2°

After reviewing the simulations and discussing the different possibilities with our team, the client ultimately selected:

2 × 300W STARSHIP floodlights with 2° ultra-narrow beams and a customized mounting bracket.

This combined the client's preference for higher output with the long-distance precision of the 2° optical system.

The project also illustrates an important part of architectural lighting work.

The manufacturer's role is not simply to recommend a fixture from a catalogue.

For demanding projects, we need to understand the client's design intent, evaluate different optical solutions, run simulations, discuss the advantages and limitations of each option, and then support the final project decision.

More Wattage Is Not Always the Complete Answer

One of the most important lessons from this project was simple:

For long-distance facade lighting, more power does not automatically mean more useful light at the target.

Power is important.

But so are:

Beam angle. Optical efficiency. Installation position. Aiming accuracy. Building geometry.

When the target is more than 100 meters away, precise optical control becomes increasingly important.

A high-power fixture with inappropriate optics may waste light outside the target area.

A properly engineered narrow-beam fixture can concentrate more of its available output where it is actually required.

This is why professional facade lighting should be approached as a complete optical system rather than simply a wattage calculation.

From Lighting Fixture to Lighting Solution

At RUIROCK, we develop LED landscape and architectural lighting products for projects where standard solutions may not be enough.

For applications such as high-rise facades and long-distance architectural illumination, our STARSHIP Series can be configured with different optical distributions, power levels and customized mounting solutions according to project requirements.

For this 135-meter building, the final configuration was:

300W × 2
2° ultra-narrow beam
Customized dual-head bracket
Long-distance facade illumination

But every building is different.

The right solution should always begin with the project itself:

How high is the building?
Where can the fixtures be installed?
Which architectural areas need to be highlighted?
How much brightness is required at the top?
And what visual effect does the designer want to achieve?

Only after answering these questions should we select the power, optics and fixture configuration.

Because in architectural lighting:

The goal is not simply to create more light.

The goal is to put the right light exactly where it needs to go.
